Bitumen Drum Decanter
International road construction, highway, airport, and infrastructure projects commonly transport bitumen in steel drums due to its logistical and storage advantages. Before use, the solid bitumen inside these drums must be melted efficiently while preserving its physical properties.
MBA Asphalt Bitumen Drum Decanter is engineered to melt solid bitumen quickly and efficiently using an advanced thermal oil heating system. The molten bitumen is then transferred directly to bitumen storage tanks or asphalt mixing plants, ensuring continuous production, reduced energy consumption, and reliable operation.
What Is a Bitumen Drum Decanter ?
Bitumen Drum Decanter is an industrial system designed to melt solid bitumen transported in steel drums under controlled conditions and transfer the molten bitumen safely to bitumen storage tanks or asphalt mixing plants.
Transporting bitumen in drums is widely preferred for infrastructure, highway, airport, and remote construction projects, particularly across Africa, the Middle East, Central Asia, and other international markets. Before use, the solid bitumen must be heated to its operating temperature efficiently without compromising its quality.
Developed by MBA Asphalt, the Bitumen Drum Decanter utilizes an advanced thermal oil circulation system to provide fast, safe, and energy-efficient melting while preserving the physical properties of the bitumen. The system ensures continuous production, reliable operation, and seamless integration with bitumen storage and asphalt production facilities.
Bitumen Drum Decanter Technical Specifications
5–10 TPH High Melting Capacity:
Designed for continuous industrial operation, the Bitumen Drum Decanter delivers a melting capacity of 5 to 10 tons per hour (TPH), ensuring a stable bitumen supply for asphalt mixing plants and large-scale infrastructure projects.
24–48 Drum Capacity:
Depending on the selected model, the system can accommodate 24 to 48 steel drums simultaneously, providing high-volume bitumen melting with improved productivity and reduced loading frequency.

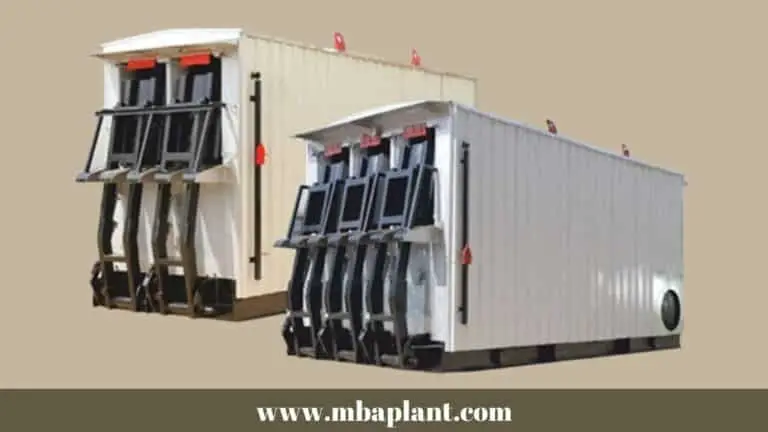

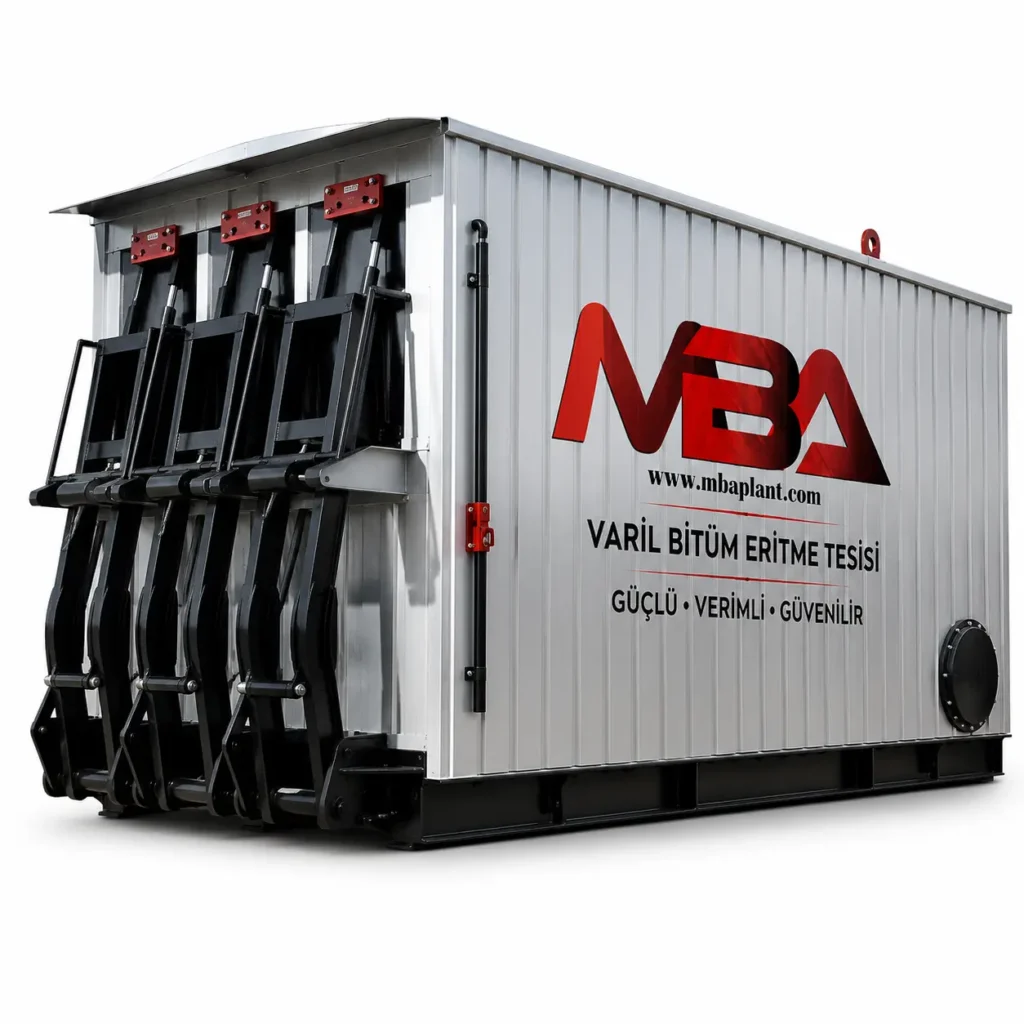

Hydraulic Drum Lifting Doors:
Heavy-duty hydraulic lifting doors allow steel drums to be loaded quickly, safely, and efficiently while reducing operator effort and improving workplace safety.
Independent Heating Chambers:
Each melting chamber operates with an independent thermal oil heating system, enabling zonal temperature control, higher energy efficiency, and optimized melting performance.
High-Density Thermal Insulation:
The Bitumen Drum Decanter is insulated with high-density thermal insulation materials to minimize heat loss, reduce fuel consumption, and maintain consistent operating temperatures.
Integrated Molten Bitumen Storage Chamber:
An integrated molten bitumen storage chamber collects melted bitumen safely before transfer, ensuring uninterrupted operation and continuous production.
Containerized and Easy-to-Transport Design:
The compact, containerized structure allows easy transportation, making the Drum Bitumen Melting Plant ideal for international shipping and remote construction sites.
Integrated Bitumen Transfer Pumping Station:
The system includes a high-performance bitumen transfer pump for efficient and reliable delivery of molten bitumen to storage tanks, service tanks, or asphalt mixing plants.
Automatic Temperature Monitoring and Pump Control:
Digital temperature monitoring continuously measures molten bitumen temperature, while the pumping system can operate automatically according to the preset process parameters.
Maximum Level Float Switch:
A high-precision maximum level float switch protects the storage chamber against overflow, improving operational safety and ensuring reliable system performance.
How Does a Bitumen Drum Decanter Work ?

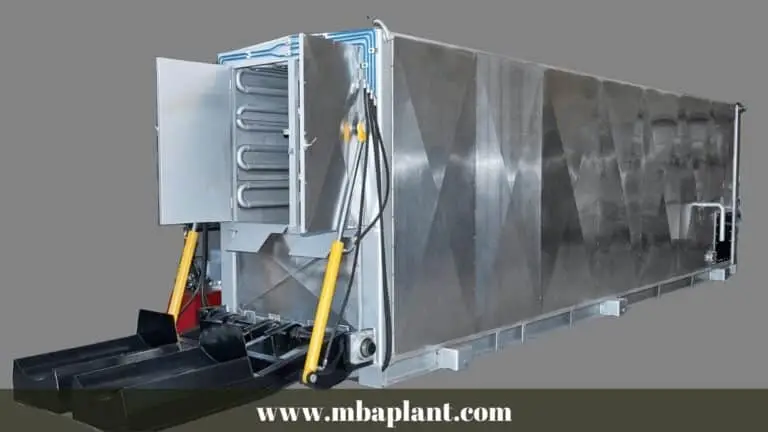

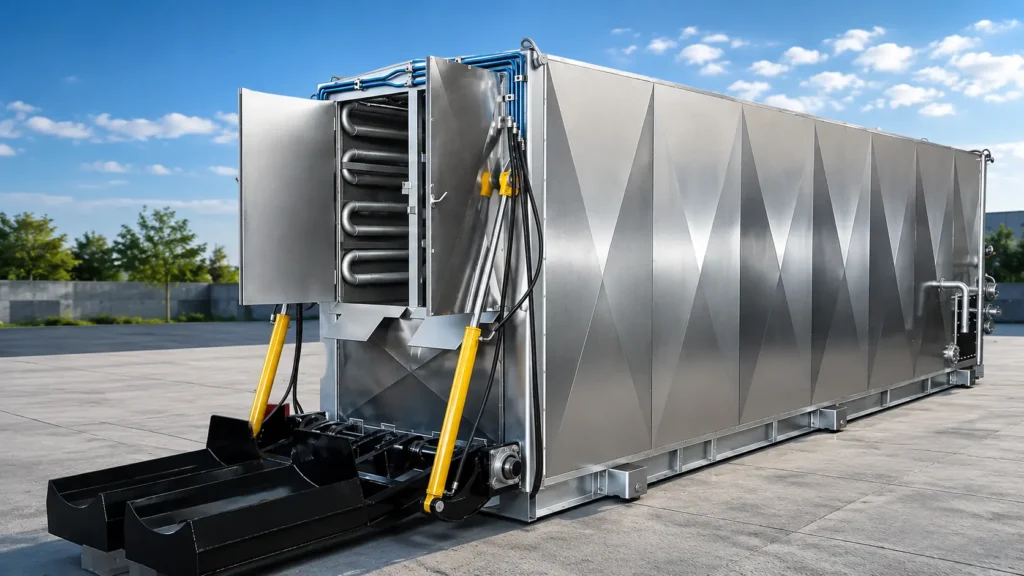

Steel drums are loaded into the Bitumen Drum Decanter using hydraulic loading doors. Once positioned on the specially designed loading frame, the drums are inverted and heated indirectly by thermal oil circulation coils, allowing the solid bitumen to melt gradually under controlled temperatures without affecting its quality.
The molten bitumen flows into the integrated molten bitumen storage chamber, where it is maintained at the required operating temperature by a high-efficiency thermal insulation system. A high-performance bitumen transfer pump then delivers the molten bitumen directly to bitumen storage tanks, service tanks, or asphalt mixing plants.
This fully automated melting process ensures continuous production, minimizes operator intervention, reduces energy consumption, and provides a safe, reliable, and efficient bitumen handling solution for industrial applications.
BITUMEN DRUM DECANTER MANUFACTURER
Reliable Bitumen Drum Decanter Solutions Designed for Your Production Requirements !
Bitumen Drum Decanter Frequently Asked Questions
Find answers to the most frequently asked questions about Bitumen Drum Decanters, thermal oil heating technology, bitumen melting systems, and bitumen transfer processes.
Is an External Pump Required for Bitumen Transfer ?
No. The Bitumen Drum Decanter is equipped with an integrated bitumen transfer pump that transfers molten bitumen safely and efficiently to bitumen storage tanks, service tanks, or asphalt mixing plants.
The system continuously monitors the bitumen temperature and can automatically control the pumping process according to the preset operating parameters. This ensures reliable operation, minimizes manual intervention, and maintains continuous production.
What Additional Equipment Is Supplied with the Bitumen Drum Decanter ?
MBA Asphalt provides complete turnkey Bitumen Drum Decanter solutions. In addition to the Bitumen Drum Decanter, we can supply all essential equipment required for a complete bitumen melting system, including thermal oil heaters, bitumen storage tanks, service tanks, bitumen transfer pumps, piping systems, automation, and related accessories.
Our experienced engineering team manages the entire process—from design and manufacturing to installation, commissioning, and operator training—ensuring a reliable, efficient, and fully integrated bitumen handling solution.
Does the Thermal Oil Heating System Preserve Bitumen Quality ?
Yes. The thermal oil heating system preserves the quality of the bitumen by providing indirect and uniform heating. Unlike direct flame heating, which can cause overheating, oxidation, or premature aging, thermal oil circulation maintains a controlled temperature throughout the melting process.
The Bitumen Drum Decanter uses high-efficiency thermal oil heating coils to ensure homogeneous heat distribution, allowing the bitumen to melt safely while maintaining its original physical and chemical properties. This process improves production efficiency, reduces energy consumption, and extends the service life of the bitumen.
What Determines the Price of a Bitumen Drum Decanter and How Can I Request a Quote ?
The price of a Bitumen Drum Decanter depends on several factors, including the melting capacity (5–10 TPH), drum loading capacity (24–48 drums), level of automation, and the overall project scope.
Customers can choose either a standalone Bitumen Drum Decanter or a complete turnkey bitumen melting system, including a thermal oil heater, bitumen storage tanks, service tanks, bitumen transfer pumps, piping systems, and automation equipment.
At MBA Asphalt, every project is engineered according to the customer’s production requirements. Contact our sales and engineering team today to receive a customized technical proposal and a competitive quotation tailored to your project.
