Mobile Concrete Plant:
Fast Installation & Maximum Mobility

For road construction, bridge projects, dams, pipelines, and short-term construction sites, mobile concrete plants provide the ideal solution with fast installation and immediate production. MBA Mobile Concrete Plants feature an integrated chassis that can be transported by a single truck tractor, eliminating the need for a concrete foundation and allowing commissioning within just a few days.

Compared to conventional stationary plants, our mobile concrete plant models significantly reduce transportation and installation costs while maintaining high concrete quality, production efficiency, and reliable performance. Designed for demanding job sites, they combine mobility, durability, and advanced PLC automation in one compact system.

💡 Looking for a permanent solution? Visit our Concrete Batching Plants category to explore our stationary and compact concrete plant models.

Key Advantages of Mobile Concrete Plants

Mobile concrete plants provide significant engineering and operational advantages, helping reduce construction costs while maximizing efficiency on temporary and fast-moving job sites.

No Concrete Foundation Required: Installed on a level, compacted surface without the need for expensive concrete foundations, reducing civil work and project costs.

Integrated Single-Chassis Design: Aggregate bins, weighing systems, concrete mixer, and PLC control cabin are integrated into a single mobile chassis for easy transportation and quick setup.

Fast Installation & Relocation: The plant can be assembled, dismantled, and relocated within just a few days, allowing rapid production at different project locations.

Lower Transportation & Logistics Costs: The entire plant can be transported by a standard truck tractor or shipped internationally using container or trailer transport, minimizing logistics expenses.

Maximum Job Site Flexibility: As construction progresses or projects are completed, the plant can be easily moved to the next site, ensuring efficient asset utilization and reduced downtime.

Mobile Concrete Plant Models & Technical Specifications

MBA offers mobile concrete plant models designed for different project sizes and mobility requirements. With production capacities ranging from 30 m³/h to 120 m³/h, our mobile plants provide fast installation, reliable performance, and easy transportation while meeting the demands of infrastructure, road construction, and ready-mix concrete projects.

MODEL	CAPACITY	AGGREGATE BIN CAPACITY	MIXER TYPE	TOTAL MOTOR POWER
MCP30	30 m³/h	4 .x8 m3	0,5 m³-Pan – Single Shaft – Planetary	75 kW
MCP60	60 m³/h	4 x 10 m³	1 m³ – Pan – Single Shaft – Planetary	110 kW
MCP100	100 m³/h	4 x 12 m³	Twin Shaft – 2 m³	160 kW
MCP120	120 m3/h	4 x 15 m³	Twin Shaft – 3 m³	210 kW

Request a Custom Quote for Your Mobile Concrete Plant !

Every project has unique site conditions, production requirements, and transportation constraints. Our engineering team will help you select the most suitable mobile concrete plant configuration based on your project location, required production capacity, logistics plan, and budget. Contact us today to receive a customized technical proposal and competitive quotation tailored to your specific needs.

PHONE -whatsapp

+90 546 726 06 06

PHONE 2

+90 541 253 58 06

[email protected]

Main Components of a Mobile Concrete Plant

Every component of an MBA Mobile Concrete Plant is engineered to maximize mobility, minimize transportation dimensions, and ensure rapid installation and commissioning at the job site.

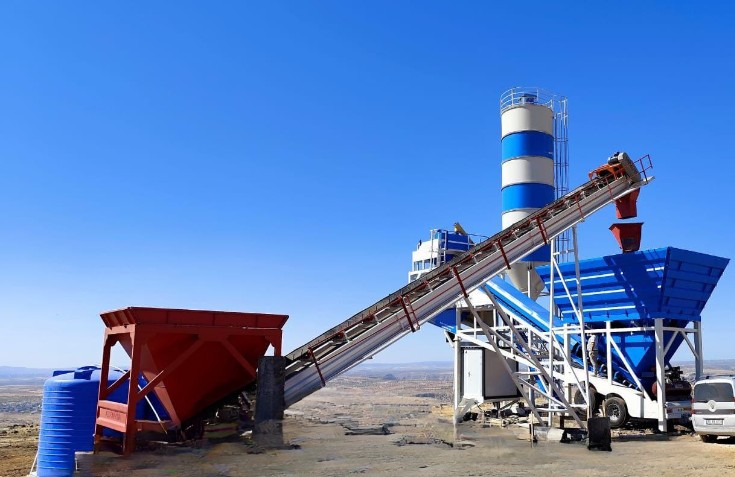

1. Mobile Chassis with Axles and Hydraulic Jacking System

The heavy-duty mobile chassis supports the complete batching and mixing system and is equipped with road-approved axles, wheels, braking, and signaling systems. Hydraulic jacks enable fast leveling and stable installation on-site without requiring permanent foundations.

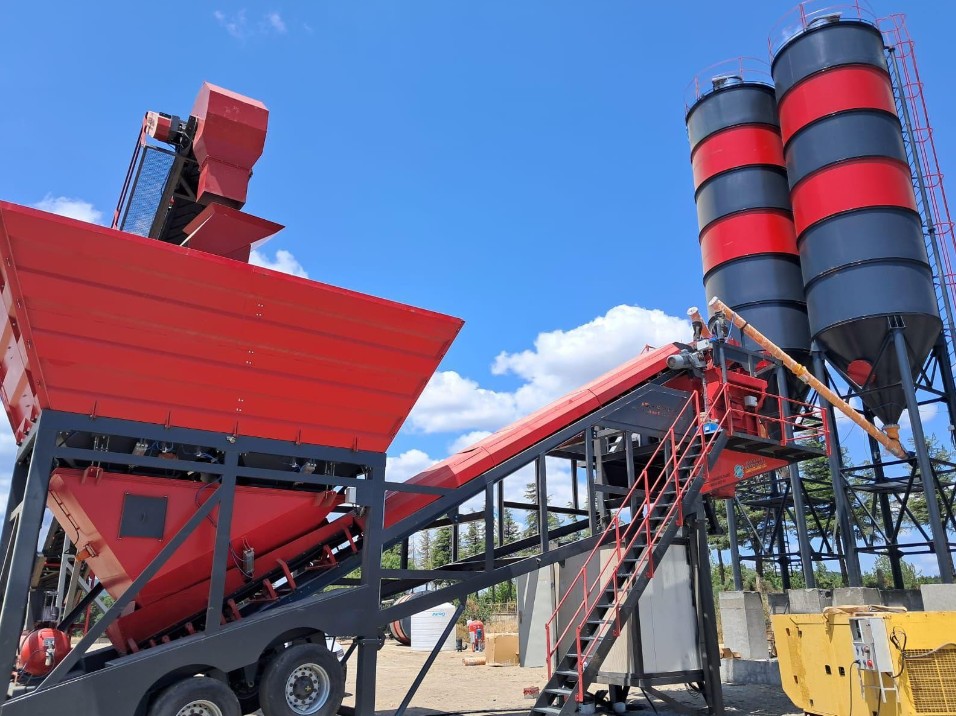

2. High-Performance Mixing System

To ensure superior concrete quality, our mobile plants are equipped with either Twin Shaft Mixers or Planetary Mixers, depending on the required production capacity and application. Wear-resistant liners and high-strength mixing components provide long service life and reliable performance.

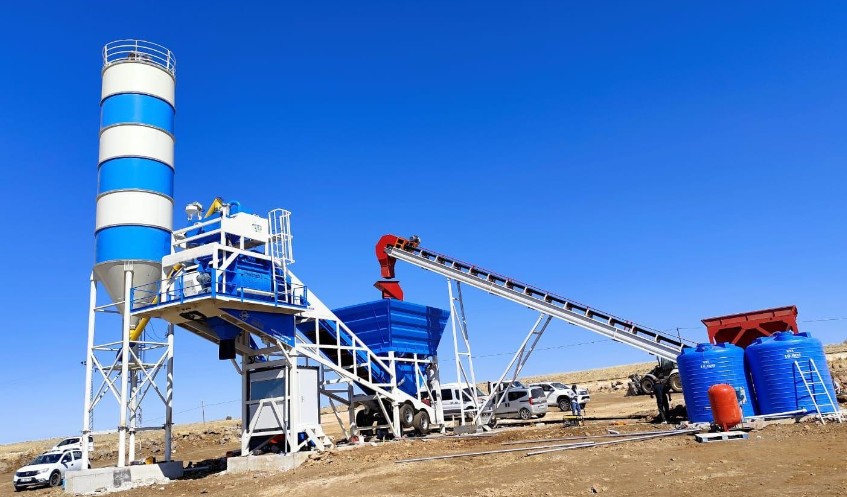

3. Integrated Aggregate Bins & Feeding Conveyor

The compact aggregate storage bins and feeding conveyor are designed for efficient material handling while minimizing transport dimensions. Folding conveyor and cover systems allow the plant to occupy minimal space during transportation and enable rapid setup at the job site.

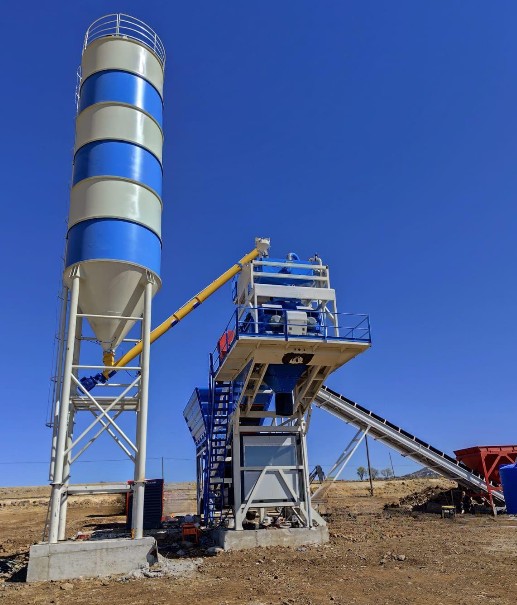

4. Mobile Cement Silos & Screw Conveyors

Depending on project requirements, the plant can be integrated with horizontal mobile cement silos, vertical bolted cement silos, or on-chassis cement storage solutions. Screw conveyors ensure continuous and accurate cement feeding for uninterrupted concrete production.

What Determines the Price of a Mobile Concrete Plant?

The price of a mobile concrete plant depends on production capacity, chassis and axle configuration, mobility features, and the selected optional equipment. Since every project has unique operational requirements, each plant is individually engineered and quoted to provide the most suitable solution.

The main factors affecting the price include:

Production Capacity (m³/h):

Production capacity has a direct impact on the plant’s chassis design, mixer size, aggregate bin capacity, and overall equipment dimensions. For example, a 30 m³/h mobile concrete plant differs significantly from a 120 m³/h heavy-duty model in terms of engineering and manufacturing requirements.

Chassis, Axle & Mobility Configuration:

The number of axles, road transport compliance, braking systems, and other mobility features are key factors influencing the overall cost of the plant.

Cement Storage Solution:

Depending on project requirements, the plant can be supplied with a horizontal mobile cement silo or integrated with vertical bolted cement silos, which directly affects the total investment cost.

Automation & Optional Equipment:

PLC automation, generator integration, admixture dosing systems, moisture sensors, and other optional equipment enhance plant performance and play an important role in the final price.

Customized Engineering Solution:

Our engineering team carefully evaluates your project requirements to recommend the most suitable mobile concrete plant configuration and provide a customized technical proposal and competitive quotation.
