Bitumen Storage Pit
Bitumen Storage Pit is a reinforced concrete storage structure designed for the safe storage of hot bitumen, maintaining its temperature, and supplying it back to the production process whenever required. It is widely used in bitumen storage terminals, asphalt plants, polymer modified bitumen (PMB) plants, bitumen emulsion plants, and bitumen logistics facilities as a cost-effective and long-lasting storage solution.
MBA designs and builds thermal oil heated bitumen storage pits according to project requirements. The system is constructed by excavating the ground and casting reinforced concrete. Thermal oil heating coils installed inside the pit keep the bitumen at the required operating temperature, ensuring continuous flow and reliable pumping to the production line.
What is a Bitumen Storage Pit?
A Bitumen Storage Pit is an underground reinforced concrete storage system designed to store large quantities of bitumen while maintaining its temperature through an integrated thermal oil heating coil system.
Unlike conventional steel storage tanks, concrete bitumen pits offer an economical solution for high-capacity storage applications. The circulating thermal oil transfers heat evenly throughout the pit, preventing the bitumen from solidifying and ensuring uninterrupted production.
Bitumen Storage Pit Technical Features
The most critical factor in large-capacity bitumen storage is maintaining the required temperature while minimizing energy consumption. MBA Bitumen Storage Pits are engineered to deliver reliable performance, efficient heat transfer, and long service life.
High-Efficiency Thermal Oil Heating Coil System

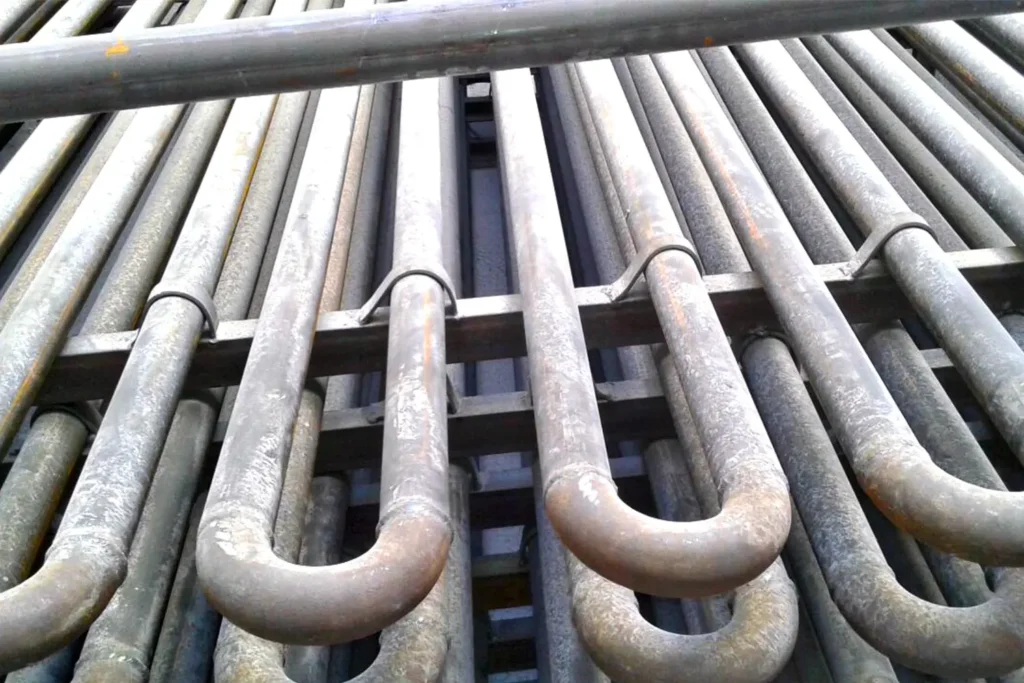

The thermal oil heating coils installed at the bottom of the bitumen storage pit are designed using precise engineering calculations. The seamless steel coil system distributes heat evenly throughout the storage pit, preventing localized cooling and maintaining a uniform bitumen temperature.
Maximum Thermal Insulation
Our heated bitumen storage pits are designed with high-performance insulation systems that minimize heat loss caused by ambient conditions and ground temperature. This reduces fuel consumption while keeping the stored bitumen at the required operating temperature.
Heavy-Duty Reinforced Concrete Construction
MBA underground bitumen storage pits are built using reinforced concrete structures engineered to withstand high storage capacities, thermal stresses, and long-term operation. The robust construction provides exceptional durability and low maintenance requirements.
Optional Temperature and Level Monitoring
For improved process control, the storage pit can be equipped with temperature sensors and radar level transmitters. These instruments continuously monitor bitumen temperature and storage level, allowing seamless integration with the asphalt plant or terminal automation system.
How Does a Bitumen Storage Pit Heating System Work ?
For large-capacity bitumen storage projects where conventional vertical or horizontal storage tanks are insufficient, the Bitumen Storage Pit Heating System provides an efficient and reliable solution by maintaining the bitumen at the required operating temperature.
1. Thermal Energy Generation
Hot thermal oil produced by the thermal oil heater is circulated through the heating coil network installed inside the reinforced concrete bitumen storage pit. This closed-loop system provides continuous and energy-efficient heat transfer.
2. Localized and Uniform Heating
The thermal oil heating coils are strategically positioned, with higher coil density around the bitumen suction area to maintain optimum pumping temperature. This design heats only the required zone instead of the entire storage pit, reducing fuel consumption while keeping the bitumen between 140°C and 160°C.
3. Safe and Continuous Bitumen Transfer
Once the bitumen reaches the required viscosity, it is transferred by high-performance bitumen transfer pumps to asphalt mixing plants, PMB plants, bitumen emulsion plants, storage tanks, or loading facilities, ensuring uninterrupted production and efficient operation.
REINFORCED CONCRETE BITUMEN STORAGE PIT MANUFACTURER
Get a Quote for Custom Reinforced Concrete Bitumen Storage Pits Designed for Your Project Requirements !
Frequently Asked Questions About Bitumen Storage Pits
Find answers to the most frequently asked questions about reinforced concrete bitumen storage pits, thermal oil heating systems, storage capacities, applications, and engineering solutions.
Why should a Bitumen Storage Pit be preferred over vertical storage tanks?
For large-scale bitumen storage projects or regions where bitumen supply is seasonal, storing thousands of tons of bitumen in conventional vertical tanks can require significant investment and large installation areas.
A reinforced concrete Bitumen Storage Pit provides a more economical solution for high-capacity storage while reducing construction costs. Thanks to its thermal oil heating coil system, heat is concentrated around the suction zone, minimizing energy consumption and ensuring that the bitumen remains at the required pumping temperature.
Why is the design of thermal oil heating coils important?
The diameter, length, and layout of the thermal oil heating coils directly affect the heat transfer efficiency of a Bitumen Storage Pit. An improperly designed heating coil system may result in uneven heating, increased fuel consumption, and unnecessary energy losses.
At MBA, we perform detailed thermal engineering calculations based on the storage capacity, site conditions, and local climate to design the most efficient thermal oil heating coil system. This ensures uniform temperature distribution, optimum bitumen viscosity, lower operating costs, and reliable long-term performance.
Can you upgrade the heating system of our existing reinforced concrete Bitumen Storage Pit?
Yes. In addition to designing and constructing new Bitumen Storage Pits, MBA also provides retrofit and modernization services for existing reinforced concrete storage pits.
We replace outdated, inefficient, or damaged thermal oil heating coil systems with newly engineered high-efficiency coil layouts designed to improve heat transfer, reduce fuel consumption, and ensure uniform bitumen heating. Every retrofit project is custom-engineered according to the existing pit dimensions, storage capacity, and operating conditions.
What storage capacities are available for Bitumen Storage Pits?
MBA designs and constructs reinforced concrete Bitumen Storage Pits in standard capacities of 500 tons, 1,000 tons, 1,500 tons, 2,000 tons, 2,500 tons, 3,000 tons, and 5,000 tons.
Custom storage capacities and dimensions can also be engineered to meet specific project requirements, site conditions, and operational needs.
Other Bitumen Technologies
MBA offers a complete range of bitumen equipment and processing systems for asphalt plants, bitumen terminals, and road construction projects. Our product portfolio includes PMB plants, bitumen emulsion plants, bitumen melting units, cutback bitumen plants, thermal oil heaters, and auxiliary bitumen equipment designed for reliable and efficient operation.
Browse the related product categories below to find the right solution for your bitumen storage, heating, and processing requirements.
Bitumen Tank

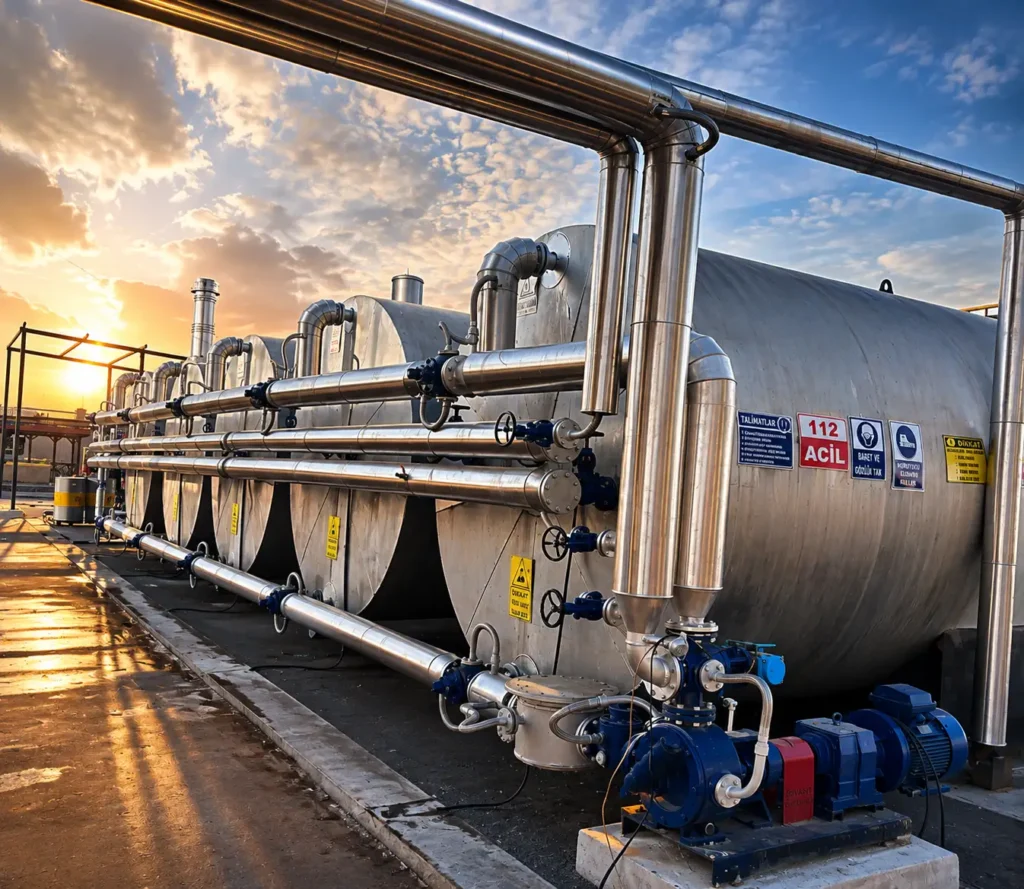

Bitumen tanks are designed for the safe storage and heating of bitumen at the required operating temperature. Available with electric or hot oil heating systems, they can be manufactured in various capacities to meet different project requirements.
Polymer Modified Bitumen (PMB) Plant

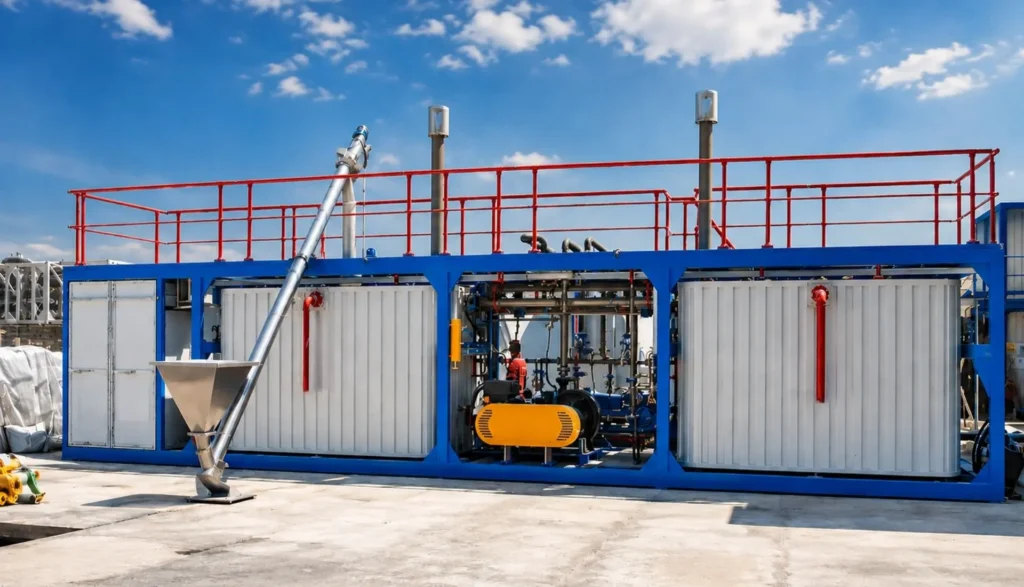

PMB plants are used for the production of high-performance polymer modified bitumen using SBS, APP, EVA, and other polymer additives. These systems ensure homogeneous mixing, accurate dosing, and efficient production processes.
Bitumen Emulsion Plant

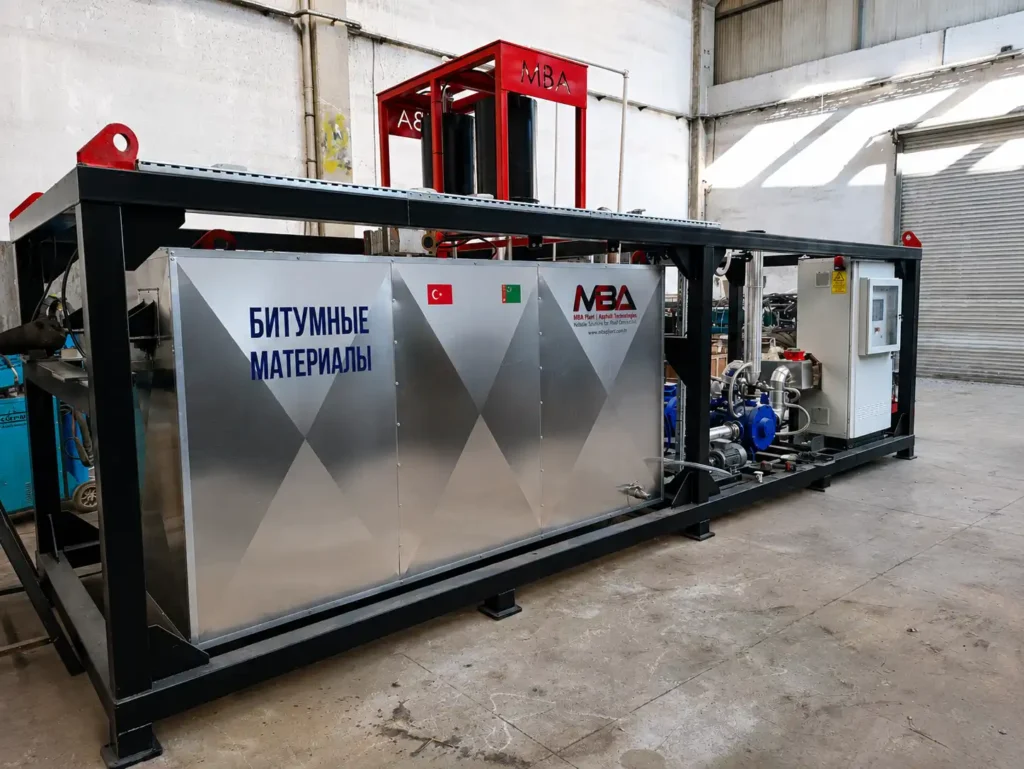

Bitumen emulsion plants are designed for the production of high-quality bitumen emulsions used in road construction and maintenance applications. Automated control systems provide consistent product quality and reliable operation.
Hot Oil Boiler

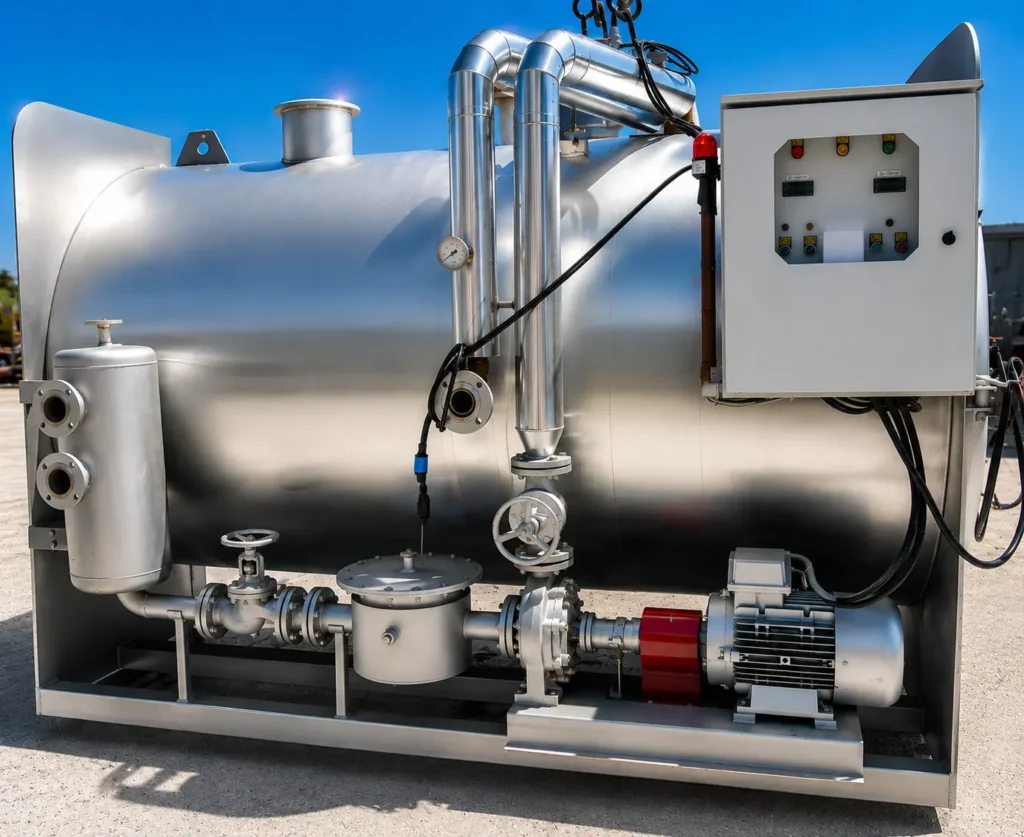

Hot oil boilers are used for heating bitumen tanks and industrial process equipment. They provide efficient thermal energy transfer, high operating efficiency, and reliable performance under demanding conditions.
Big Bag Bitumen Decanter

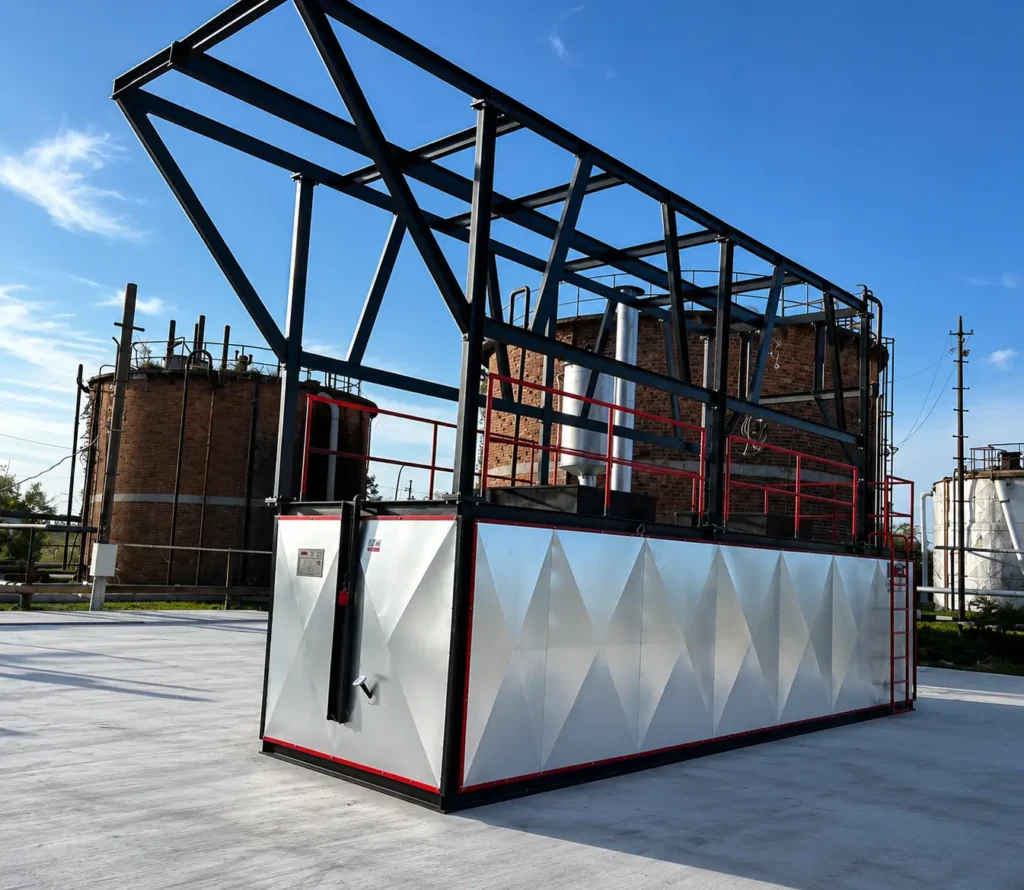

Big Bag Bitumen Decanters are designed to efficiently melt bitumen supplied in jumbo bags and prepare it for transfer to storage or production systems. With high melting capacity, energy-efficient operation, and user-friendly design, these systems provide an ideal solution for bitumen terminals, asphalt plants, and industrial bitumen processing facilities.
Drum Bitumen Decanter

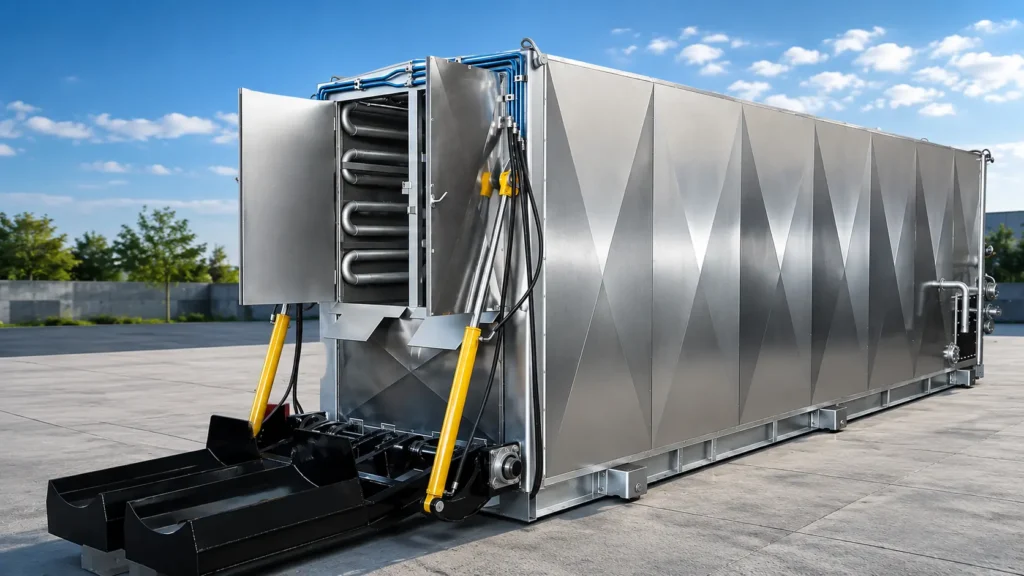

Drum Bitumen Decanters are used for the controlled melting of bitumen stored in steel drums. Their high melting efficiency, low energy consumption, and reliable operation ensure a continuous bitumen supply for asphalt production and bitumen processing applications. These systems are widely preferred for projects where bitumen is delivered in drum packaging.
Wet Mix Macadam (WMM) Plant

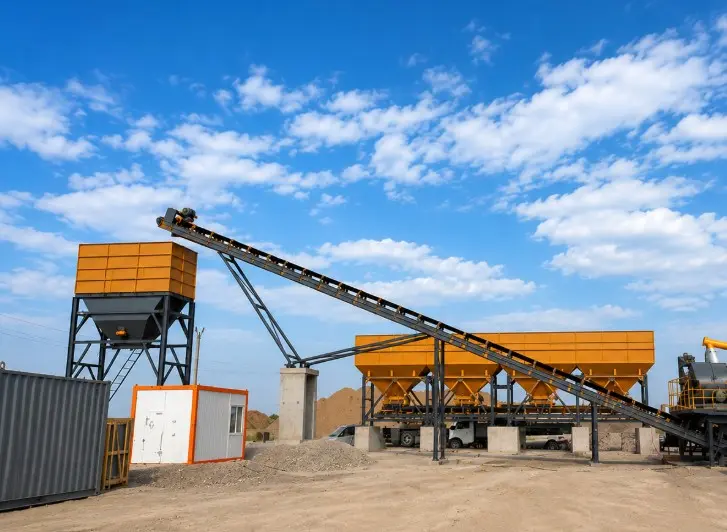

Wet Mix Macadam (WMM) Plants are designed for the accurate proportioning and mixing of aggregates, water, and additives to produce high-quality road base and subbase materials. These plants provide high production capacity, reliable operation, and consistent mixture quality for road construction and infrastructure projects.
Cutback Bitumen Plant

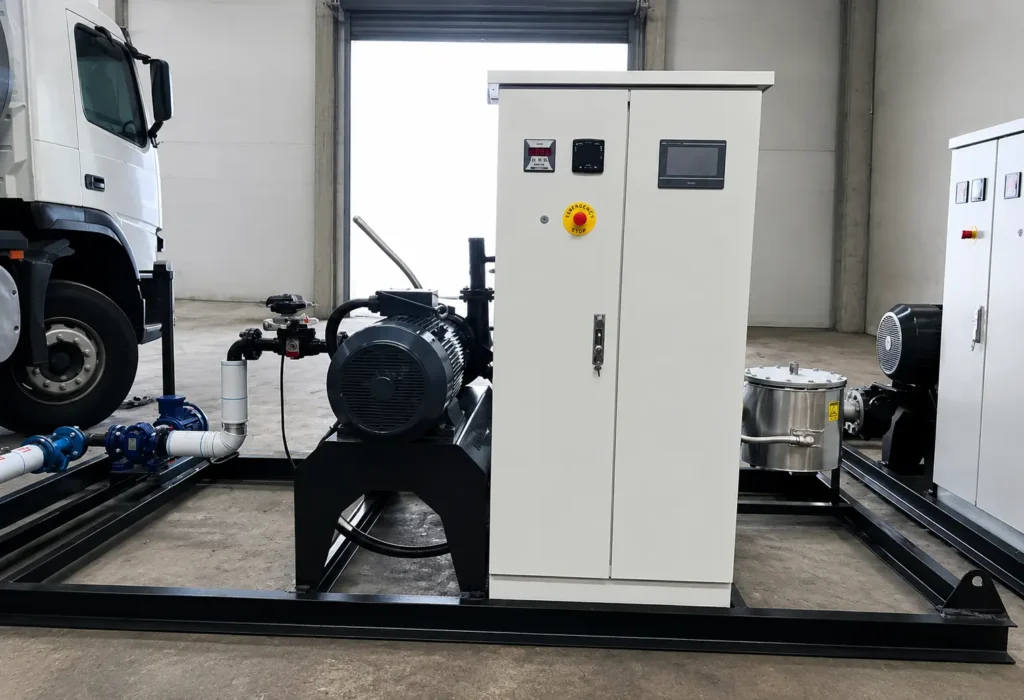

Cutback Bitumen Plants are designed for the controlled blending of bitumen and solvents to produce high-quality cutback bitumen. Equipped with precise dosing and automated process control systems, these plants ensure consistent product quality for road construction, maintenance, and surface treatment applications.
