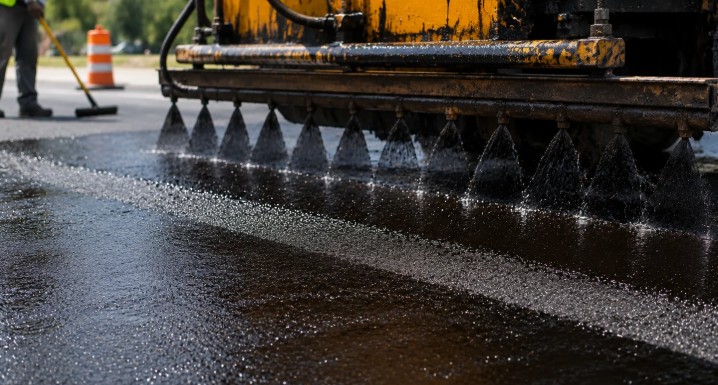

7 Critical Factors That Determine Quality in Bitumen Emulsion Production
Bitumen emulsion is produced by combining hot bitumen with an aqueous solution of water, emulsifier and acid under high shear in a colloid mill. The basic solution used in bitumen emulsions consists of:
Solution = Water + Emulsifier + Acid
Depending on the type of emulsion to be produced, stabilisers, calcium chloride, latex or other performance additives may also be added to the solution.
The colloid mill breaks the hot bitumen into micron-sized droplets. Emulsifier molecules in the solution coat the surface of these droplets, enabling them to remain stably dispersed in water.
However, producing a high-quality bitumen emulsion involves more than simply mixing bitumen and solution at predetermined ratios. The properties of the bitumen, solution composition, pH, emulsifier selection, process temperatures, colloid mill settings and dosing accuracy directly affect the quality of the final product.
If even one of these parameters falls outside its appropriate range, the emulsion may break prematurely, separate during storage, fail to adhere adequately to the application surface or become difficult to pump.
The following seven critical factors must therefore be controlled together to achieve stable and repeatable production.
1. Properties and Temperature of the Bitumen
The penetration grade, viscosity, softening point, chemical composition and crude-oil source of the bitumen can all affect the production result. Even two bitumens of the same penetration grade may interact differently with the selected emulsifier.
The bitumen must reach a suitable viscosity so that it can be divided into fine droplets in the colloid mill. It is therefore heated under controlled conditions before production.
Depending on the penetration grade, the bitumen temperature is generally maintained between 120 and 160°C. Softer bitumens may require a lower temperature, while harder grades may require a higher temperature.
The inlet viscosity at the colloid mill is just as important as the temperature. A process viscosity of approximately 250–350 cSt is generally targeted.
If the bitumen is not heated sufficiently:
* It may become difficult to pump.
* The motor load of the colloid mill may increase.
* The required droplet size may not be achieved.
* Production capacity may decrease.
* Blockages may occur in the mill or pipelines.
Overheating, on the other hand, can raise the mill outlet temperature, accelerate bitumen ageing, waste energy and create a risk of boiling in the aqueous phase.
Before production, it is important to check:
* Penetration grade
* Softening point
* Viscosity at the production temperature
* Storage temperature and duration
* Presence of water or foreign matter
* Chemical compatibility with the selected emulsifier
When bitumen is sourced from different refineries, laboratory trials with each new source are recommended.
2. Correct Preparation of the Solution
The solution used in bitumen emulsion is prepared by homogeneously mixing clean water, emulsifier and acid.
Basic composition of the emulsion solution:
* Water
* Emulsifier
* Acid
* Stabilisers and other additives, depending on the formulation
Acid is not used only to reduce the pH. It also helps activate many cationic emulsifiers and enables them to dissolve properly in water.
Water should first be added to the solution preparation tank. The emulsifier and acid should then be introduced in the order specified by the emulsifier supplier. The tank agitator must ensure uniform distribution of the chemicals.
The following parameters should be controlled during solution preparation:
* Water quantity and quality
* Emulsifier dosage
* Acid dosage
* Solution temperature
* pH value
* Mixing time
* Order in which the chemicals are added
Water hardness and mineral content can also affect product quality. High levels of calcium, magnesium or other ions may alter emulsifier performance and storage stability.
For most standard production processes, the solution temperature may be approximately 35–60°C. The precise value should nevertheless be determined according to the bitumen temperature, bitumen content, emulsifier type and target mill outlet temperature.
The chemistry of anionic emulsions is different. An alkaline component is generally used instead of acid. The formulation must therefore be adapted according to whether a cationic or anionic emulsion is required.
3. Correct Emulsifier Selection and Dosing
The emulsifier is the key chemical component that coats the fine bitumen droplets formed in the colloid mill and prevents them from recombining.
Selecting an emulsifier involves more than deciding whether the product is cationic or anionic. The intended application and target breaking time must also be considered.
Bitumen emulsions are generally classified as:
* Rapid-setting
* Medium-setting
* Slow-setting
The same emulsifier and formulation cannot be used indiscriminately for surface dressing, tack coat, slurry seal and microsurfacing. Aggregate mineralogy, application method, ambient temperature and required breaking time must be evaluated together.
Insufficient emulsifier dosage may cause:
* Coalescence of bitumen droplets
* Premature separation
* Reduced storage stability
* Excessive sieve residue
Excessive emulsifier dosage may:
* Increase production costs.
* Extend the breaking time.
* Change sensitivity to water.
* Affect final-product viscosity.
The exact dosage should be determined by considering the emulsifier supplier’s recommendations, laboratory trials and field performance together.
4. Acid Dosage and pH Control
The pH of the solution is one of the most critical process parameters in cationic bitumen emulsion production. Acid dosage affects activation of the emulsifier and the formation of a positive electrical charge on the bitumen droplets.
An unsuitable pH may cause:
* Insufficient activation of the emulsifier
* Recombination of bitumen droplets
* Reduced storage stability
* Changes in breaking rate
* Poor adhesion to aggregate
* Quality variations between production batches
The required acid dosage should not be fixed solely according to a target pH. The alkalinity and mineral content of the process water also affect acid demand. Different water sources can therefore produce different pH values even when the same quantity of acid is added.
The pH should be measured after the water, emulsifier and acid have been thoroughly mixed in the solution tank. It should be rechecked whenever the formulation or water source changes, not only at the initial start-up.
The acid type and target pH must be selected according to the emulsifier’s technical characteristics and the required emulsion grade. There is no single pH value suitable for every emulsion.
Automatic pH measurement and controlled acid dosing can reduce quality variations caused by manual intervention.
5. Bitumen, Solution and Mill Outlet Temperatures
Three temperatures must be controlled together during production:
* Bitumen temperature at the colloid mill inlet
* Solution temperature at the colloid mill inlet
* Bitumen emulsion temperature at the mill outlet
Typical ranges for standard production are:
Bitumen temperature: generally 120–160°C
Solution temperature: generally 35–60°C
Emulsion temperature at the mill outlet: generally 85–95°C
Target outlet temperature: approximately 90 ±5°C
These are general process ranges rather than fixed formulation values. Actual temperatures must be selected according to bitumen penetration, bitumen content, emulsifier type and plant conditions.
In atmospheric systems, the bitumen emulsion temperature at the colloid mill outlet must not reach 100°C.
Approaching the boiling point of water may cause:
* Flash vaporisation
* Foaming
* Pressure build-up in pipelines
* Unstable pump operation
* Loss of emulsion stability
* Operational safety risks
For example, a bitumen temperature of approximately 130–140°C and a solution temperature of approximately 40–60°C may result in an outlet temperature close to 90°C, depending on the bitumen content.
The outlet temperature is not determined solely by the inlet temperatures of the two phases. Mechanical friction inside the colloid mill also adds heat to the product.
If production above 100°C is required because of harder or polymer-modified bitumen, a back-pressure system and an emulsion cooler should be used to prevent the water from boiling.
6. Colloid Mill Settings and Droplet Size
The colloid mill is the main process unit that disperses hot bitumen into very fine droplets within the solution. The high shear force between the rotor and stator breaks up the bitumen and creates a homogeneous emulsion.
Droplet size and distribution are affected by:
* Rotor speed
* Rotor–stator gap
* Total flow through the mill
* Bitumen viscosity
* Bitumen and solution temperatures
* Bitumen-to-solution ratio
* Emulsifier dosage
* Condition and wear of the mill
Oversized droplets may increase the risk of sedimentation, creaming or phase separation during storage. An excessively fine droplet structure may increase energy consumption and change the breaking behaviour of some formulations.
Motor power and stated tonnes-per-hour capacity should not be the only criteria when selecting a colloid mill. Rotor–stator geometry, adjustable gap, construction material, wear resistance and actual operating flow must be considered together.
Wear can gradually increase the rotor–stator gap. Consequently, droplet distribution and storage stability may change even when the same formulation and flow rate are maintained.
7. Bitumen-to-Solution Ratio and Dosing Accuracy
The bitumen content of the final product is one of the main properties determining emulsion performance. Different contents may be required depending on the emulsion grade and applicable standard.
Variations in the instantaneous flow rates of bitumen and solution directly affect:
* Residual bitumen content
* Viscosity
* Storage stability
* Breaking behaviour
* Spraying performance
Systems based on manual valve settings may be affected by operator-related flow variations. Flowmeters, controlled pumps and automatic recipe management provide more stable results in industrial production.
An accurate dosing system:
* Reproduces the formulation in every production batch.
* Reduces variations in bitumen content.
* Controls emulsifier and acid consumption.
* Makes product-quality monitoring easier.
* Limits operator errors.
* Records production data.
Stable product quality depends not only on the correct formulation but also on a bitumen emulsion plant equipped with accurate dosing, temperature control and a correctly sized colloid mill.
Conclusion
Quality in bitumen emulsion production does not depend on a single machine, chemical or formulation. The entire process must operate in harmony, from bitumen properties and water quality to emulsifier and acid dosing, pH control, colloid mill settings and outlet temperature.
For standard production, controlling the bitumen at approximately 120–160°C, the solution at approximately 35–60°C and the emulsion at the mill outlet at approximately 85–95°C, subject to bitumen penetration and viscosity, is fundamental to stable production.
Determining the formulation through laboratory trials, monitoring process values through automation and selecting equipment suited to the project help produce a stable, repeatable bitumen emulsion that complies with the applicable specifications.
