SBS Dosing, Mixing and Storage in PMB Production:
What Affects Product Quality?
In the production of polymer modified bitumen (PMB) with styrene-butadiene-styrene (SBS), the objective is more than adding a specified percentage of polymer to bitumen. For the finished binder to meet the required physical and rheological properties, base bitumen compatibility, dosing accuracy, mixing conditions and storage behaviour must all be managed together.
Two formulations with the same SBS content may produce different laboratory results if they use different base bitumens or processing conditions. Formulation design, production settings and quality control should therefore be evaluated as parts of the same process.
Why Is Accurate SBS Dosing Important?

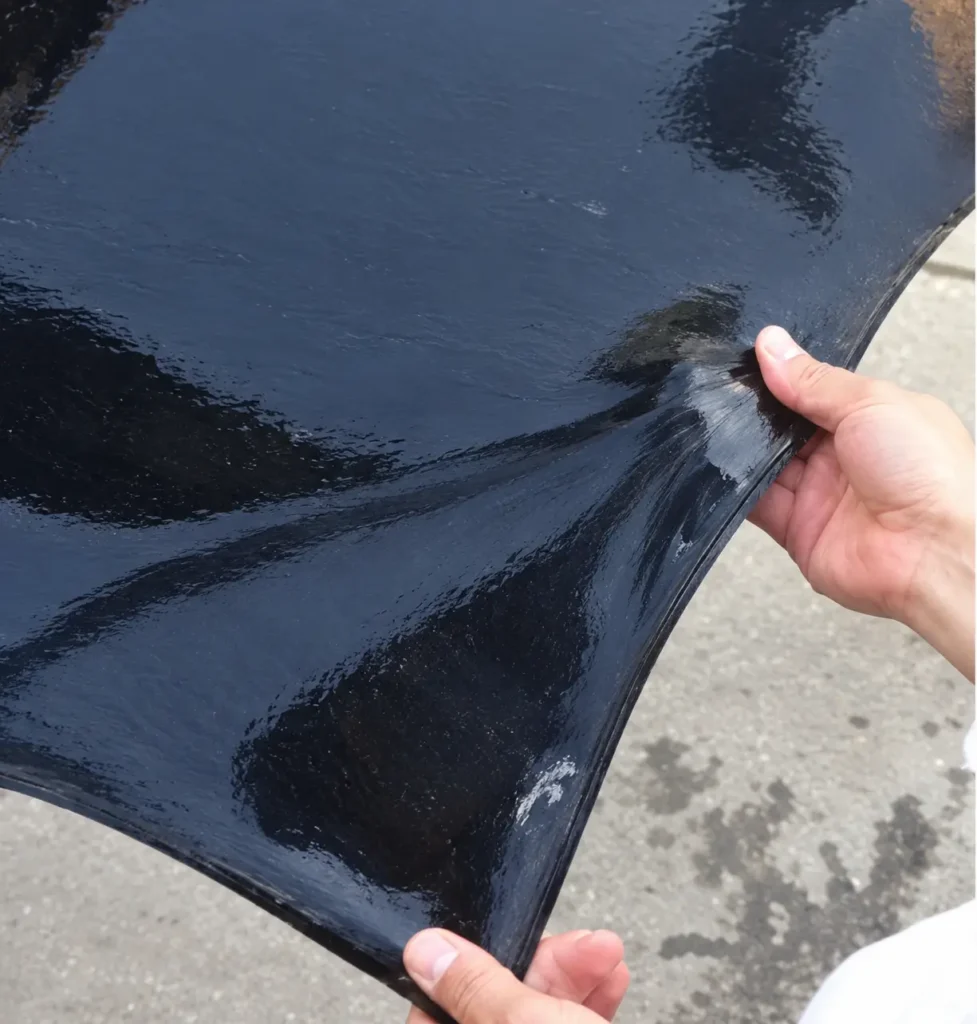

SBS is an elastomeric polymer used to improve properties such as elastic recovery and temperature-related performance. However, a higher SBS content does not automatically produce a better binder. The appropriate dosage depends on the properties of the base bitumen, the type of SBS, the target PMB grade and the project specification.
Deviations from the target dosage can cause variation between production batches. The quantity of polymer fed into the system should therefore be measured, monitored and recorded in relation to the bitumen flow rate. Feeding arrangements may differ between continuous and batch processes, but the aim is the same: to reproduce the approved formulation consistently.
Polymer percentage alone is not sufficient to validate a formulation. Laboratory results and storage stability should also be considered.
How Should Base Bitumen and SBS Compatibility Be Evaluated?
The properties of the base bitumen directly influence the finished PMB. Bitumens from different sources, or with different compositions, may produce different results even when the same SBS and processing settings are used.
When changing the source or grade of base bitumen, it should not be assumed that the existing formulation will deliver identical performance. Laboratory trials can be used to check the resulting binder properties and its behaviour during heated storage.
This assessment is particularly important when the finished PMB will remain in storage for an extended period or be transported before use.
How Do Mixing and Colloid Mill Settings Affect Quality?
After SBS is introduced into the bitumen, the materials are initially mixed. The blend then passes through a high-shear mill in processes that require it, helping to disperse the polymer throughout the binder.
The presence of a mill alone does not guarantee consistent PMB quality. Inlet temperature, flow rate, polymer feed rate, circulation arrangement and processing time all affect the result. Insufficient processing may leave the product non-uniform, while excessive heat exposure or prolonged processing may adversely affect its properties.
Mixing and milling conditions should therefore be established for the materials and target binder rather than treated as fixed settings suitable for every formulation.
How Should Circulation and Maturation Be Managed?
Some PMB formulations require further mixing or circulation at a controlled temperature after the initial milling stage. The required conditions depend on the materials, process design and target product properties.
Holding time should not be used as the sole measure of quality. It must be considered alongside temperature, mixing conditions and intermediate test results. Longer processing is not necessarily better.
Recording the base bitumen used, SBS dosage, temperatures, processing times and laboratory results for each batch also helps operators reproduce successful formulations and investigate any variation.
What Is the Risk of Phase Separation During PMB Storage?
Finished PMB is not always used immediately. It may be held in a storage tank or transported to another facility. Compatibility between the base bitumen and polymer remains important during this period.
Phase separation is the tendency of the polymer and bitumen to lose their uniform distribution during heated storage. If this occurs, samples taken from different levels of a tank may show different properties, such as different softening points.
This risk cannot be addressed by tank mixing alone. Material compatibility, formulation, storage temperature and holding time should be assessed together. The tank’s heating and mixing arrangements should then be operated under conditions validated for the particular product.
Which Tests Are Important for Quality Control?
The quality control plan should follow the applicable project specification. Knowing the production temperature and SBS dosage does not, by itself, demonstrate that the finished binder meets the required grade.
Depending on the specification, testing may include penetration, softening point, elastic recovery, viscosity and relevant rheological properties. Where storage stability is important, the tendency toward separation after heated storage should also be evaluated using the specified test method.
Reviewing laboratory results together with production records makes it easier to investigate whether a deviation is related to the raw materials or to the production process.
Conclusion: Consistent PMB Requires a Controlled Process
No single piece of equipment or fixed polymer percentage determines PMB quality. Base bitumen and SBS compatibility, accurate dosing, appropriate mixing, controlled circulation, suitable storage and laboratory verification all contribute to a consistent product.
When planning a PMB production line, the required capacity should be considered alongside the intended formulations, existing bitumen tanks, heating infrastructure and expected storage time. For plant configurations and technical specifications, visit the MBA Polymer Modified Bitumen Plant page.
